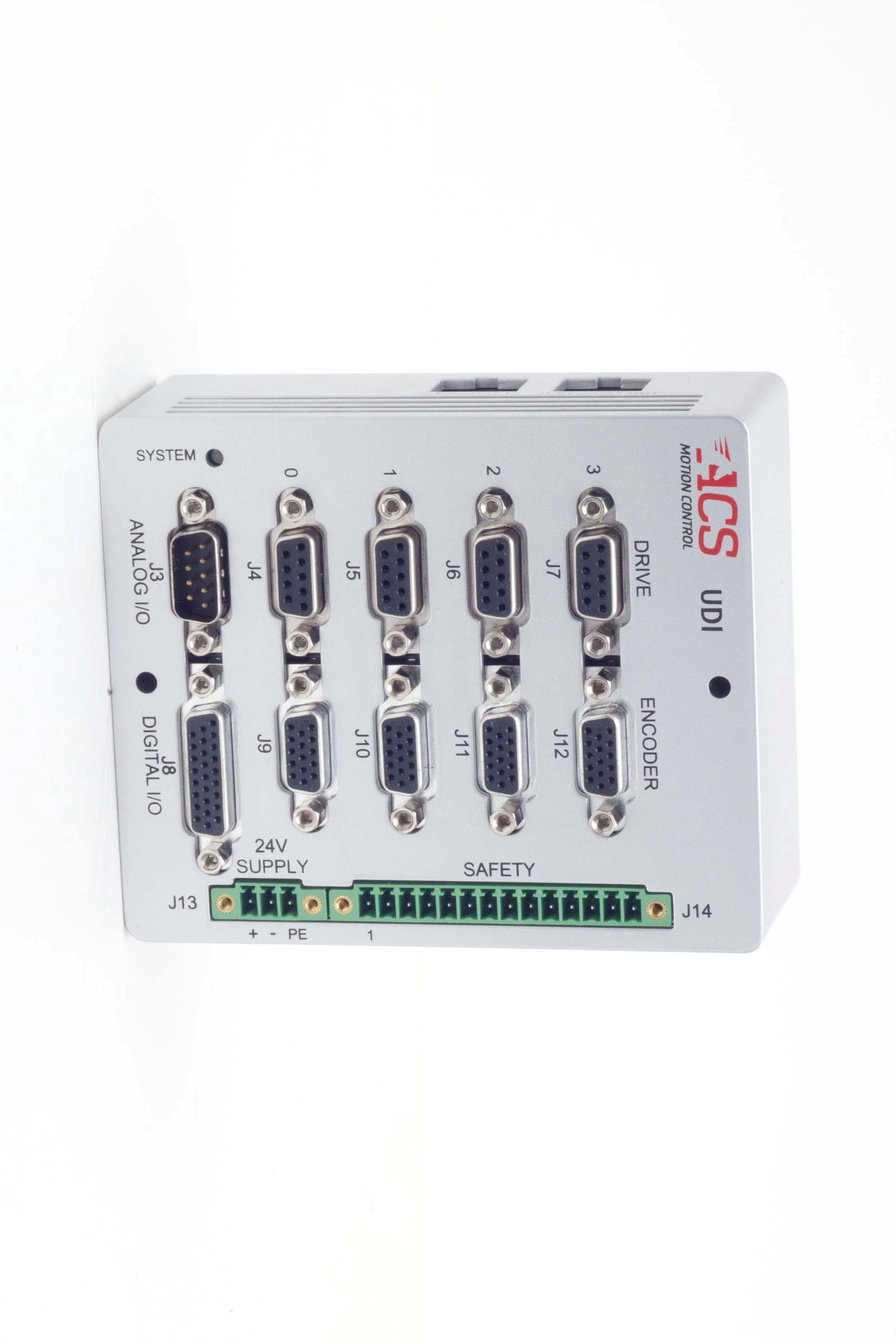

UDIhp-lt總線模擬量控制模塊
? Commanding Motor Drives with ±10V Interface,
such as linear drives and piezo motor drives
? Outstanding performance
ServoBoost, powerful control algorithms
20kHz sampling and update rate
Sinusoidal commutation
? Feedback
Two or Four channels
Standard: Digital incremental
Optional: Absolute (up to two), Sin-Cos (up to four)
? Digital I/O: 4 Registration MARK inputs,
1 PEG and 4 motor brake (24V, 0.2A) outputs
4 dedicated general purpose inputs
? Analog I/O: 2 inputs, 1 output
? Compact footprint: 121x100x48 mm3
